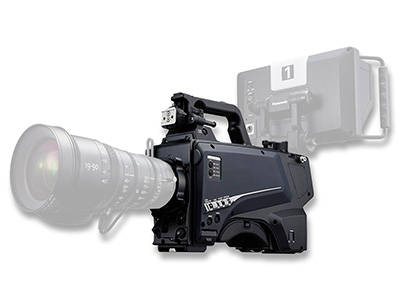

AK-PLV100 4K CINELIVE 4K Studio Camera

The AK-PLV100 4K CINELIVE 4K Studio Camera from Panasonic combines the operability of a studio camera with the ability to use cine-style lenses for shallow depth-of-field looks. Its VariCam heritage offers features like a cinematic look, a V-Log profile, and dual native ISOs for nuanced capture in a range of light levels. Equipped with a large-format 5.7K Super35 sensor, this ARRI PL-mount camera can switch from cinematic 24p capture to broadcast-style 30p capture.

Designed for studio use, the AK-PLV100 camera does not incorporate a recorder, instead it outputs video via its LEMO SMPTE fiber optic, 12G-SDI, or 3G-SDI connectors. It captures up to 59.94 frame rates and can output 12G-SDI signals directly from the camera head without the need for a CCU. Compatibility with 2/3" studio systems enables you to maintain a base set of components that can be used with different camera heads chosen according to your desired output.

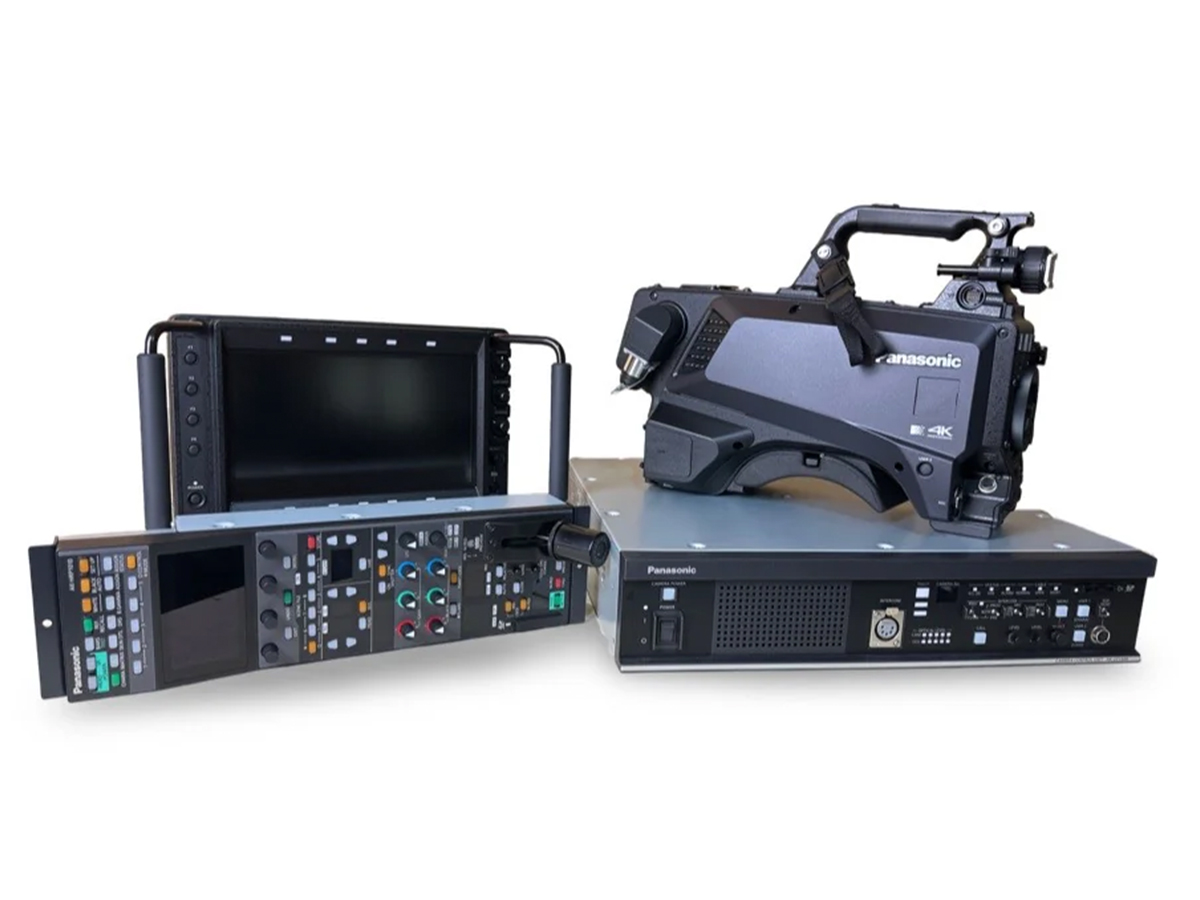

AK-UCU600 Camera Control Unit (CCU)

With the AK-UCU600 Camera Control Unit (CCU), uncompressed long distance transmission of 4K/HD video signals via optical fiber is supported. The AK-HRP1000GJ/1005GJ Remote Operation Panels (ROP) are equipped with a color LCD display that provides excellent visibility and functions for quick response. This system achieves high-quality video and excellent operability. In cases where power is supplied by the CCU, it is possible to transmit at a long distance of up to approx. 2,000 m between the camera and the CCU. The distance can be extended up to 10,000 m by providing a local power supply at the camera head and using general-purpose single mode optical fiber. Between the CCU and the ROP, in addition to a dedicated serial line, IP connection via LAN cable is also supported.

AK-HVF100 9" LCD Color Viewfinder

Light weight and high resolution (9-type IPS LCD 1920*1080, 1,100 TV lines) viewfinder with built-in mechanical lift versatile assist functions. Equipped with Newly Designed Tilt Mechanism and Extensive Functions such as Focus Assist and External Video Input.

AK-HRP1010 - Remote Operation Panel

Full Function Remote Operation Panel for Panasonic AK Studio Cameras and select PRO PTZ Cameras. 1/4-type rack size remote operation panel (ROP). Can be used with a mix of studio and Panasonic remote control cameras via IP connection

‍
